How to Determine Which Bevel Gear Design is Right for Your Application

When your machine needs to transfer power between shafts that intersect at odd angles, standard gears won't cut it.

That's where bevel gears come in, keeping operations moving smoothly across countless industrial applications and vehicles worldwide.

What Are Your Bevel Gear Options?

Four main types: straight, spiral, zerol, and hypoid. Each cuts its teeth differently, and that drives how it performs.

• Straight bevel gear: The most common type, with straight, tapered teeth. Works well but gets noisy at high speeds or heavy loads.
• Spiral bevel gear: Curved teeth create gradual contact, so operation is quieter, and wear is lower than a straight bevel gear.
• Zerol bevel gear: Curved teeth that run parallel to the axis.
• Hypoid bevel gear: Offset design, perfect for vehicle differentials and similar applications.

Bevel gears have conical pitch faces, and the angle between that face and the mounting axis sets the pitch angle.

Most run at a 90-degree right angle, like a hand drill, but they can be built to any pitch angle your application calls for.

What's the Difference Between a Bevel Gearbox and a Right-Angle Gearbox?

A bevel gearbox is defined by its gear type. The teeth are cut with a conical profile to move power between intersecting shafts. A right-angle gearbox is defined by its shaft configuration.

Not every right-angle gearbox uses bevel gears; helical and worm are often-used gears, and Branham builds right-angle gearboxes all three ways.

So "bevel" and "right-angle" answer two different questions: what's inside and how the shafts are arranged.

Straight or Spiral Bevel Gear: Which Should You Choose?

For light-duty, low-speed, budget-conscious applications, go straight. For continuous or high-speed operation, go spiral.

Here's why.

Noise. Straight teeth make contact all at once as the gears rotate, so you get a clattering noise that's noticeable at medium and high speeds. Spiral teeth mesh gradually, which keeps things quiet.

Durability. That same sudden impact from straight teeth raises the risk of shock loading, and shock loading means premature wear or damage. Spiral teeth are curved and inherently stronger, and several teeth stay engaged at once instead of slamming together.

Efficiency. Spiral bevel gears run smoother. Less vibration, less lost torque, less heat, and less risk of overheating, which is a real problem with straight-tooth designs under load.

Axial thrust. Both types produce axial thrust from their conical shape. In a spiral bevel gear, that force shifts depending on which way the shaft is turning.

Cost. Spiral bevel gears cost more. If your application doesn't need the extra performance, straight bevel gears still get the job done for less.

So who needs spiral bevel? Applications with high speeds, high torque, frequent load cycles, or continuous operation.

Where Do Bevel Gears Show Up in Real-World Applications?

More places than you'd think.

Wind turbines. Blades turn slowly, but generators need high-speed rotation to make electricity. Bevel gears bridge that gap, and spiral bevels are especially good at handling the force involved.

Cooling towers. Industrial cooling fans run around the clock. When downtime costs money, spiral bevel gears hold up to that kind of continuous duty.

Steel manufacturing. Steel mills are hard on equipment. Bevel gears keep conveyors moving, power rolling mills, and drive cutting equipment under heavy, repetitive loads.

Printing presses. Perfect prints depend on rollers staying synchronized. Spiral bevel gears keep that alignment tight even at high speed.

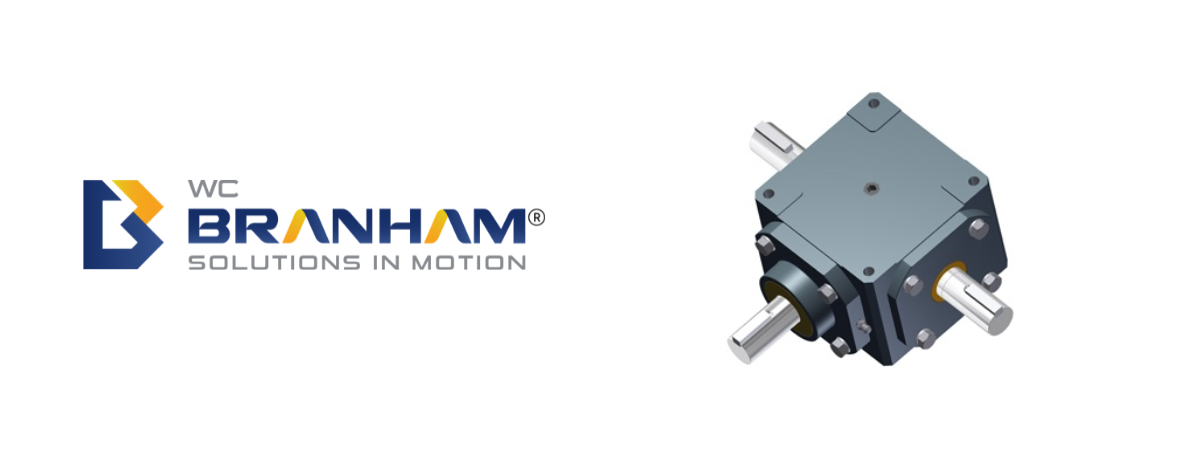

Why Choose a Right-Angle Bevel Gearbox Configuration?

Because it moves power on the same plane without the offset a helical gearbox needs, which matters when space is tight.

Right-angle gearboxes are a fixture in manufacturing and industrial settings generally, most often built with helical gears, but some use bevel gears instead.

Here's what that configuration gets you:

• On-plane operation. No offset required, so it fits where a helical gearbox can't.
• Higher torque and speed capacity. More tooth surface area on a spiral bevel design supports higher torque and speed than a straight-tooth setup.
• Smoother, quieter operation. Gradual, precise tooth engagement means less vibration and less lost power.
• Even load distribution. Wear spreads out instead of concentrating, so the gearbox lasts longer.
• Versatile power transfer. Power can move left, right, or both directions at once, including counter-rotational setups where one shaft turns clockwise and the other counterclockwise.

That combination makes a right-angle bevel gearbox configuration, and specifically Branham's MICROGEAR® line, a strong fit for textile equipment, mattress sewing equipment, material handling, cartoning and packaging, and theatrical rigging.

Straight vs. Spiral: A Quick Comparison

"Right-angle" describes a shaft configuration, not a tooth design, so it's shown here paired with spiral bevel gearing, Branham's standard approach for this configuration, rather than as a fourth independent gear type.

What Makes Spiral Bevel Gears a Good Investment?

Precision. Modern manufacturing has made spiral bevel gears far more accessible than they used to be, but the payoff still comes down to a few things:

• Flexible positioning. Power goes exactly where you need it, at any angle, without the offset a different shaft design would require.
• Minimal power loss. Under half a degree of backlash keeps power transfer efficient.
• Reduced noise. Teeth engage gradually instead of clacking together like a straight-cut gear under load.
• Lower maintenance. Less wear between teeth means basic lubrication keeps them running reliably for years.

Do You Need a Custom Bevel Gear Design?

Depends on your needs.. Standard spiral bevel gearboxes in 1:1 and 2:1 ratios cover most applications. If you need a specific ratio outside that range, washdown-rated stainless steel, or a non-standard footprint, Branham's engineering team can help you figure out a custom configuration.

Which Bevel Gear Design Is Right for You?

High RPM, high torque, frequent load cycles, or speed reduction? Spiral bevel gears are your best bet. Transferring power between shafts spinning at different speeds, like a vehicle differential? Hypoid bevel gears are built for that.

The right gear selection means better performance and fewer headaches down the road, whether you're building new equipment or upgrading what you have.

If you have questions about choosing the right bevel gear design for your application, W.C. Branham's experts are ready to help you find the perfect solution.
